Condensate lifting units
Sanicondens Best Flat
Neutralisation and pumping of aggressive, acidic condensate

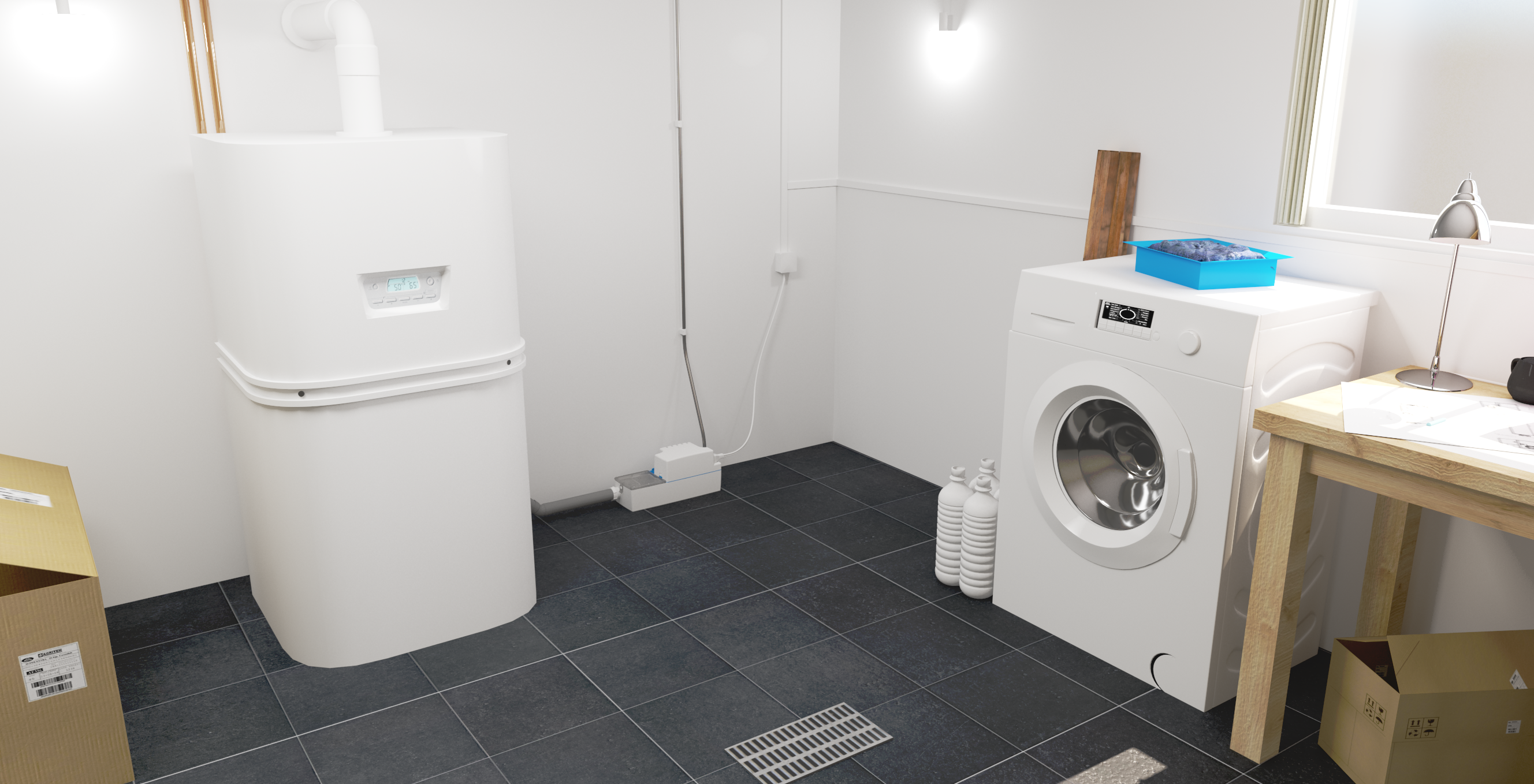

Sanicondens Best Flat is a condensate pump which, on account of its low condensing rate, is suitable for a floor-standing condensing boiler. The integrated granulate-based system neutralises the acidity of the condensate and lifts it to a height of 4.5 m over a length of 50 m. Its small size and low noise level mean that it can be discreetly combined with your gas or oil boiler. The removable lid allows for easy maintenance of the acid neutralisation system. The Sanicondens Best Flat is supplied with a non-return valve, adapters for inlet and outlet, granulate, outlet hose (5 m), alarm cable and supply cable (1.5 m).

Condensate lifting units
Sanicondens Best Flat
Neutralisation and pumping of aggressive, acidic condensate

Sanicondens Best Flat is a condensate pump which, on account of its low condensing rate, is suitable for a floor-standing condensing boiler. The integrated granulate-based system neutralises the acidity of the condensate and lifts it to a height of 4.5 m over a length of 50 m. Its small size and low noise level mean that it can be discreetly combined with your gas or oil boiler. The removable lid allows for easy maintenance of the acid neutralisation system. The Sanicondens Best Flat is supplied with a non-return valve, adapters for inlet and outlet, granulate, outlet hose (5 m), alarm cable and supply cable (1.5 m).

Special features
  • Compact and quiet solution for discrete and unobtrusive operation
  • Integrated neutralisation system protects downstream devices and lines
  • Ideal for draining condensate from condensing boilers (gas up to 80 kW or oil up to 50 kW) and air conditioning systems
  • Low 47 mm inlet for floor-standing installation
  • Installation kit for wall mounting included.
  • High level of user safety thanks to a floating alarm contact
  • Suitable for wall and floor mounting
Application
  • webanwendung_gaskessel
  • pikto_anwendung_heizkessel
Technical data
Sanicondens Best Flat
Optional water neutralisation Yes
Electrical class I
Frequency (Hz) 50-60
Degree of protection IP24
Noise level < 45
Voltage (V) 220-240
Max. recommended height (m) 4.5
Conveying distance (m) 50
Number of inlets 2
DN inlet diameter 28/32/40
32
Pressure line diameter (inner) (mm) 10
Pressure line diameter DN 10
Max. temperature of incoming water 80 °C (S3 15%)
Max. output of connected heating (kW) Heating oil 50
Gas 80
Tank volume (l) 3.5
