Condensate pumps for air conditioning units
Sanicondens Clim Mini S
Small, quiet and powerful condensate pump for air conditioning units – quick and easy to install

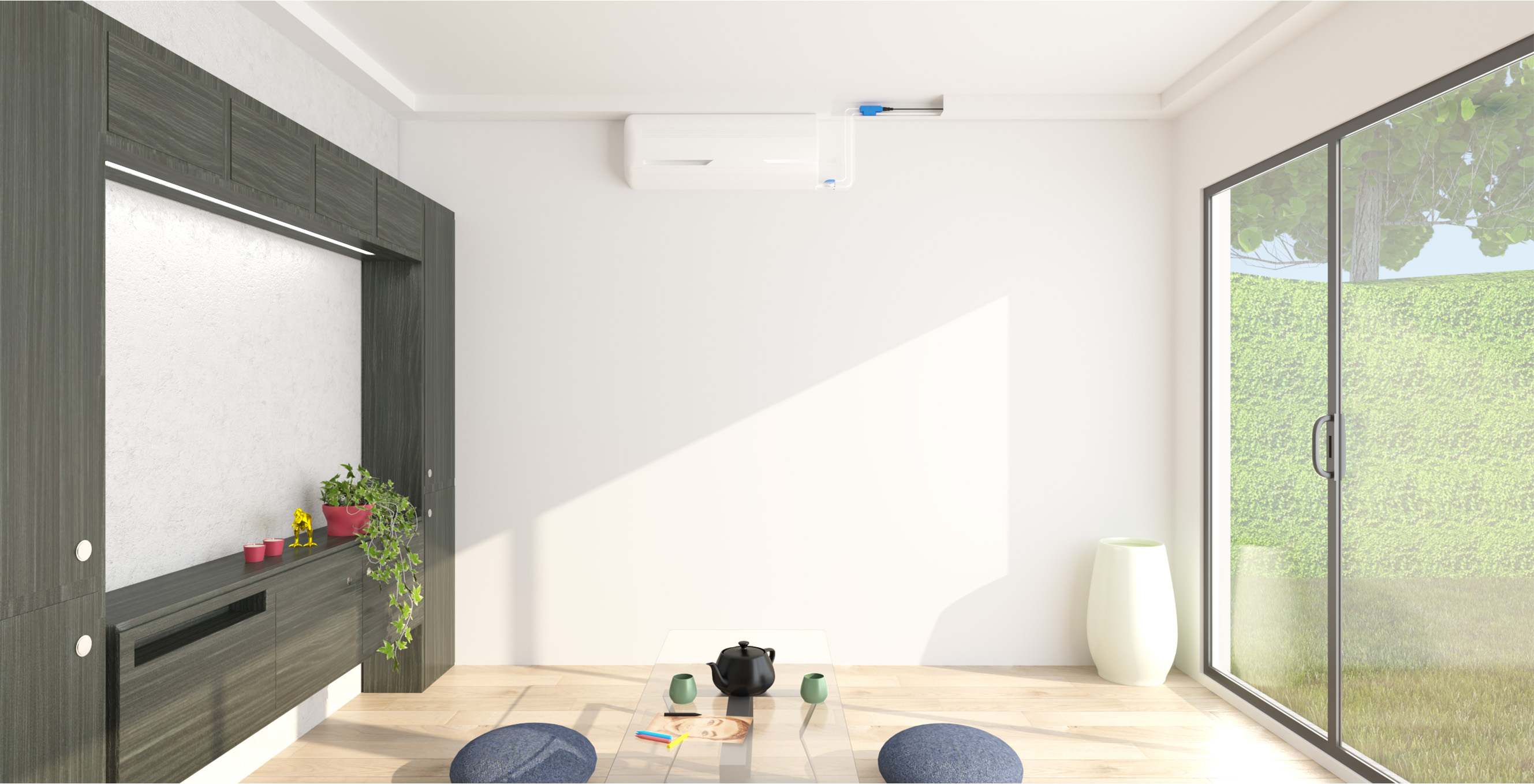

The Sanicondens Clim Mini S is a pump for draining condensate from air conditioning systems. Its miniature format makes it easy to integrate into a wall-mounted air conditioning unit. The Sanicondens Clim Mini S transports condensate up to a height of 6 m efficiently and quietly (21 dB(A)). First, the condensate enters the sensor unit. As soon as the maximum fill level is reached, the pump switches on and draws in and discharges the condensate.
Condensate pumps for air conditioning units
Sanicondens Clim Mini S
Small, quiet and powerful condensate pump for air conditioning units – quick and easy to install
The Sanicondens Clim Mini S is a pump for draining condensate from air conditioning systems. Its miniature format makes it easy to integrate into a wall-mounted air conditioning unit. The Sanicondens Clim Mini S transports condensate up to a height of 6 m efficiently and quietly (21 dB(A)). First, the condensate enters the sensor unit. As soon as the maximum fill level is reached, the pump switches on and draws in and discharges the condensate.
Special features
- Compact solution for discreet installation
- Quiet solution (only 21 dB(A)) for discreet and quiet operation
- High application safety due to overheating protection and overflow alarm
- Easy to check thanks to the transparent tank
Application
Technical data
| Sanicondens Clim Mini S | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Electrical class | I | |||||||||||||
| Frequency (Hz) | 50-60 | |||||||||||||
| Degree of protection | IP24 | |||||||||||||
| Current type | Single-phase | |||||||||||||
| Noise level | 21 | |||||||||||||
| Voltage (V) | 220-240 | |||||||||||||
| Max. recommended height (m) | 6 | |||||||||||||
| Number of inlets | 1 | |||||||||||||
| DN inlet diameter | 16 | |||||||||||||
| Pressure line diameter DN | 6 | |||||||||||||
| Discharge diameter (inner) (mm) | 10 | |||||||||||||
| Max. temperature of incoming water | 35 °C | |||||||||||||
| Max. output of connected air conditioning unit (kW) | 8 | |||||||||||||
| Flow rate max. | 9 l/h +/-15% | |||||||||||||
More Condensate pumps for air conditioning units at our booth
Sanicondens Clim Pack S
pre-assembled installation kit for mounting next to the air conditioning unit
