Condensate pumps for air conditioning units
Sanicondens Clim Pack S
pre-assembled installation kit for mounting next to the air conditioning unit

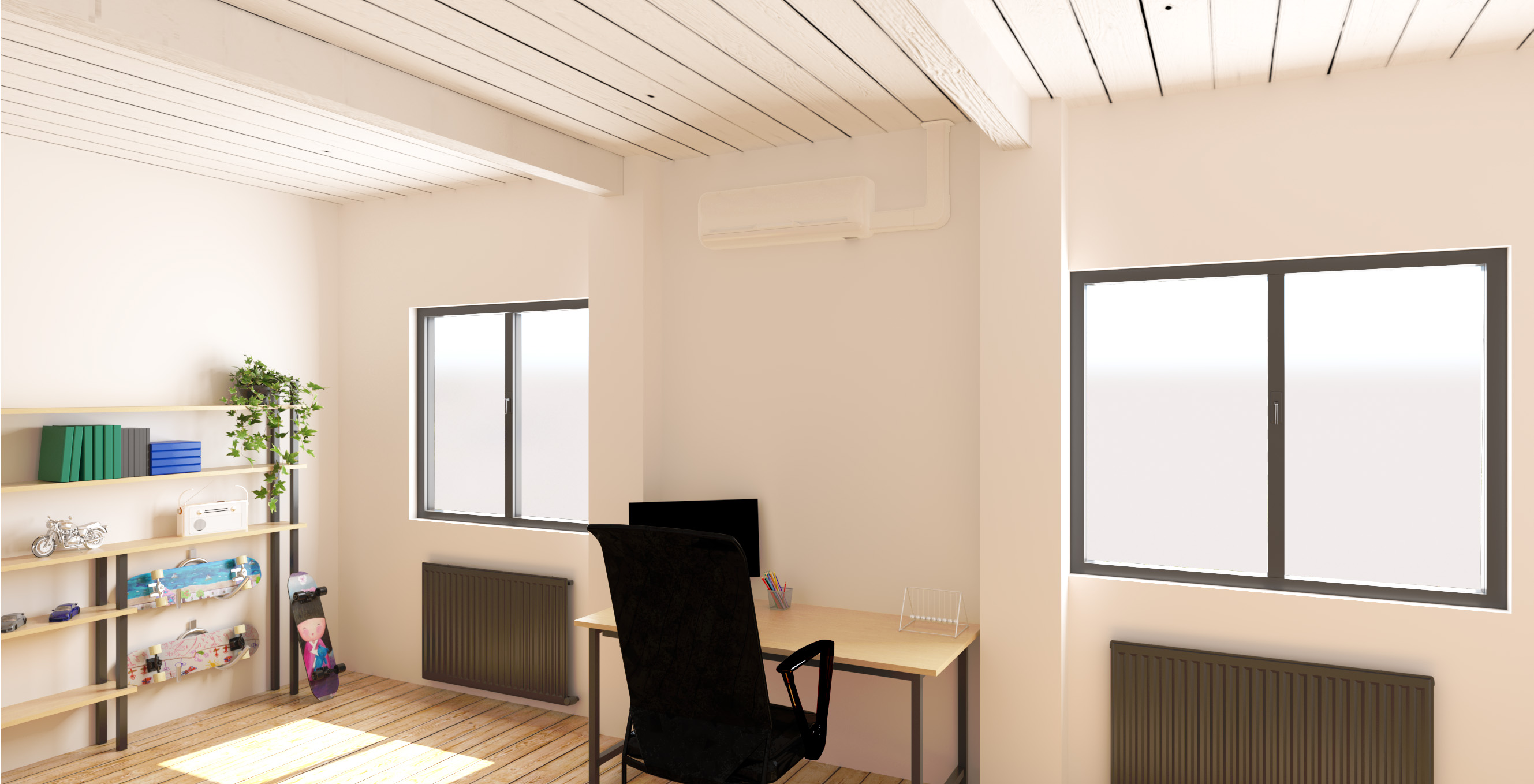

The Sanicondens Clim Pack S was developed as an aesthetically pleasing solution for pumping out condensate from air conditioning units. The entire system is installed in a very inconspicuous white cable duct. The Sanicondens Clim Pack S can draw up to 2 m between the sensor block and the pump and is extremely quiet at just 21 dB(A). First, the condensate enters the sensor block. As soon as the level is high enough, the pump switches on and draws off the condensate to discharge it. To ensure long-term safe operation, the Sanicondens Clim Pack S is equipped with thermal protection (130 °C) and an alarm contact to prevent overfilling.
Condensate pumps for air conditioning units
Sanicondens Clim Pack S
pre-assembled installation kit for mounting next to the air conditioning unit
The Sanicondens Clim Pack S was developed as an aesthetically pleasing solution for pumping out condensate from air conditioning units. The entire system is installed in a very inconspicuous white cable duct. The Sanicondens Clim Pack S can draw up to 2 m between the sensor block and the pump and is extremely quiet at just 21 dB(A). First, the condensate enters the sensor block. As soon as the level is high enough, the pump switches on and draws off the condensate to discharge it. To ensure long-term safe operation, the Sanicondens Clim Pack S is equipped with thermal protection (130 °C) and an alarm contact to prevent overfilling.
Special features
- Comprehensive solution for an aesthetically pleasing installation
- Simple installation: mounting and connection accessories included in the scope of delivery
- board can be mounted on either side (right/left)
- quiet solution for discreet and quiet operation
Application
Technical data
| Sanicondens Clim Pack S | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Electrical class | I | |||||||||||||
| Frequency (Hz) | 50-60 | |||||||||||||
| Degree of protection | IP24 | |||||||||||||
| Current type | Single-phase | |||||||||||||
| Noise level | 21 | |||||||||||||
| Voltage (V) | 220-240 | |||||||||||||
| Max. recommended height (m) | 6 | |||||||||||||
| Number of inlets | 1 | |||||||||||||
| DN inlet diameter | 16 | |||||||||||||
| Pressure line diameter DN | 6 | |||||||||||||
| Discharge diameter (inner) (mm) | 10 | |||||||||||||
| Max. temperature of incoming water | 35 °C | |||||||||||||
| Max. output of connected air conditioning unit (kW) | 8 | |||||||||||||
| Flow rate max. | 9 l/h +/-15% | |||||||||||||
