Exhibits > Domestic and garden pumps > Sanijet 5-55 PC3
Domestic and garden pumps

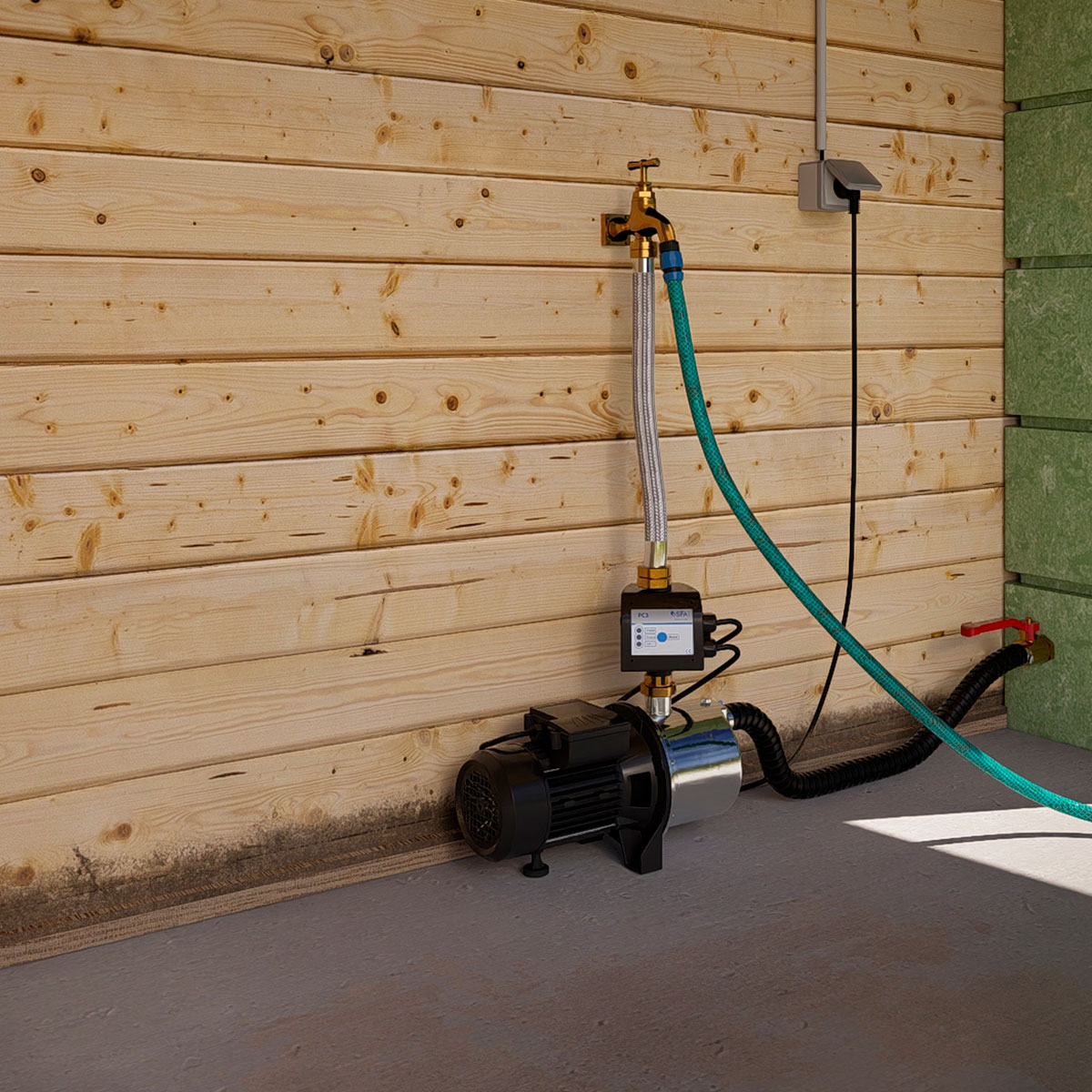

Sanijet 5-55 PC3
Surface jet pump with pressure control for clear water and rainwater

Sanijet 5-55 PC3 comprises the Sanijet 5-55 multi-stage pump and Presscontrol PC3. Its uses include domestic water supply, irrigation, pumping and the supply of untreated water with no abrasive or aggressive components. The integrated manometer allows the pump’s start-up pressure to be set between 1.5 and 3.5 bar. The Presscontrol PC3 switches the pump on when a water extraction point is opened. The pump stops automatically when there is a lack of water, and several restart attempts are made within 24 hours. Its multi-stage configuration enables quiet operation.

Domestic and garden pumps
Sanijet 5-55 PC3
Surface jet pump with pressure control for clear water and rainwater

Sanijet 5-55 PC3 comprises the Sanijet 5-55 multi-stage pump and Presscontrol PC3. Its uses include domestic water supply, irrigation, pumping and the supply of untreated water with no abrasive or aggressive components. The integrated manometer allows the pump’s start-up pressure to be set between 1.5 and 3.5 bar. The Presscontrol PC3 switches the pump on when a water extraction point is opened. The pump stops automatically when there is a lack of water, and several restart attempts are made within 24 hours. Its multi-stage configuration enables quiet operation.

Special features
  • Self-priming pump up to 8 m
  • Multi-stage pump
  • Thermal motor protection
  • Includes pressure control to adjust the start-up pressure from 1.5 to 3.5 bar
  • Additional protection against running dry
  • Hydraulic damper
  • 1.5 m cable with plug
  • Quiet
Application
  • heim_webanwendung
  • web_cleanup_app
  • web_pressure_anwendung
  • web_wells_anwendung
  • web_transfer_app
Technical data
Sanijet 5-55 PC3
Discharge head max. (m) 54
Flow rate max. (m³/h) 5
Waste water type Clear water
Rainwater
Seal Carbon/ceramic/NBR
Pump wheel Noryl
Pump wheel detail Noryl
Material fittings Brass
Diffuser Noryl
Motor insulation class F
Electrical class I
Frequency (Hz) 50
Degree of protection IP55
Power input P1 (W) 1300
Power output P2 (W) 900
Speed (1/min) 2850
Voltage (V) 230
Nominal current consumption (A) 5.2
Connection cable length (m) 1.5
Mains cable H07 RN-F
Pressure line diameter thread (inch) 1
Max. temperature (°C) 40
Circuit type Pressure switch (pneum. hydr.)
Suitable for drinking water Yes
Suitable for rainwater Yes
Compatible with irrigation systems Yes
Suction diameter G (inch) 1
Max. operating pressure (bar) 8
Suction head (m) 8
