Macerators

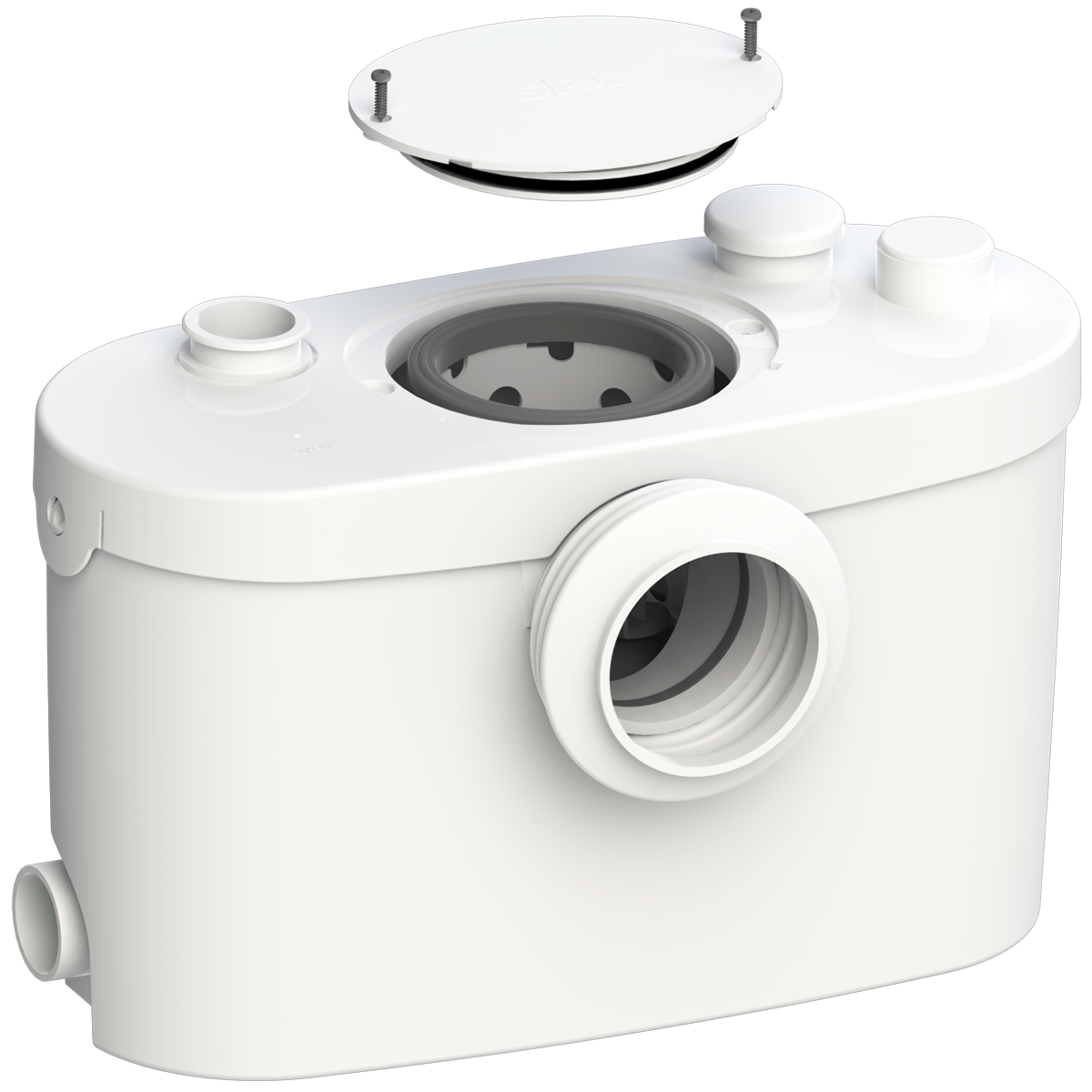

Sanipro XR UP
Macerator pump in accordance with DIN 12050-3 for the disposal of faecal waste water from an entire bathroom
The Sanipro XR UP macerator is efficient and quiet (46 dB(A)). The waste water from an entire bathroom with a toilet and shower can be drained from a height of up to 5 m over a distance of 100 m. The macerator is suitable for an entire bathroom and can be easily attached to standard toilets with a horizontal drain. Also suitable for replacing an old unit. Faults or blockages can be quickly and easily remedied via the inspection flap, without having to empty the tank or dismantle the unit. The Sanipro XR UP was awarded GOLD in the bathroom category of the IDEOBAIN 2017 innovation competition.
Macerators
Sanipro XR UP
Macerator pump in accordance with DIN 12050-3 for the disposal of faecal waste water from an entire bathroom
The Sanipro XR UP macerator is efficient and quiet (46 dB(A)). The waste water from an entire bathroom with a toilet and shower can be drained from a height of up to 5 m over a distance of 100 m. The macerator is suitable for an entire bathroom and can be easily attached to standard toilets with a horizontal drain. Also suitable for replacing an old unit. Faults or blockages can be quickly and easily remedied via the inspection flap, without having to empty the tank or dismantle the unit. The Sanipro XR UP was awarded GOLD in the bathroom category of the IDEOBAIN 2017 innovation competition.
Special features

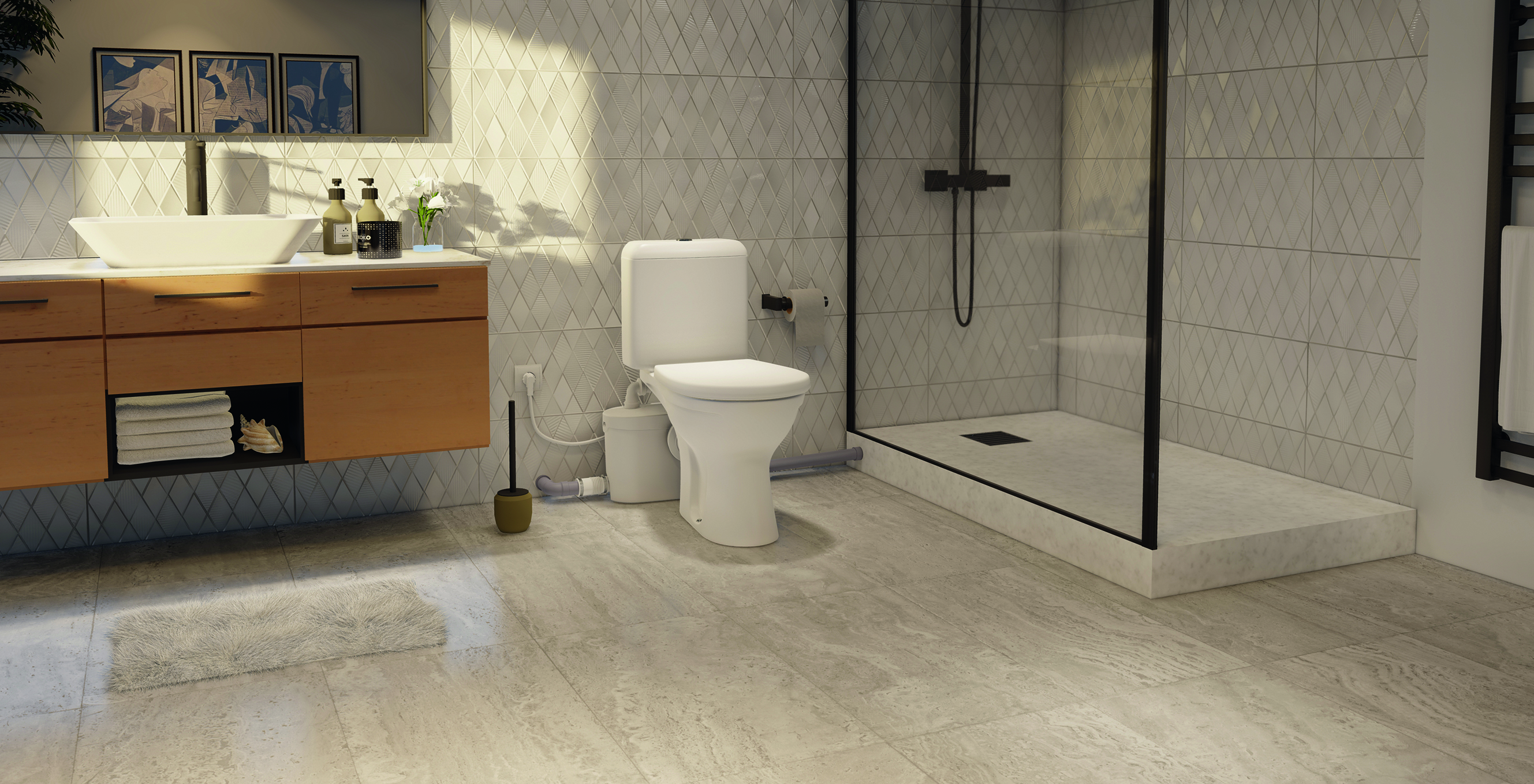

- Allows for an additional bathroom almost anywhere in the house with the connection of a toilet, shower and washbasin
- Ideal for replacing a previous model due to tried and tested dimensions
- Proven SFA macerator technology ensures high flow rates and a long service life
- Equipped with silence technology for quiet and discreet operation
- Easy to maintain thanks to direct access for inspection
Application

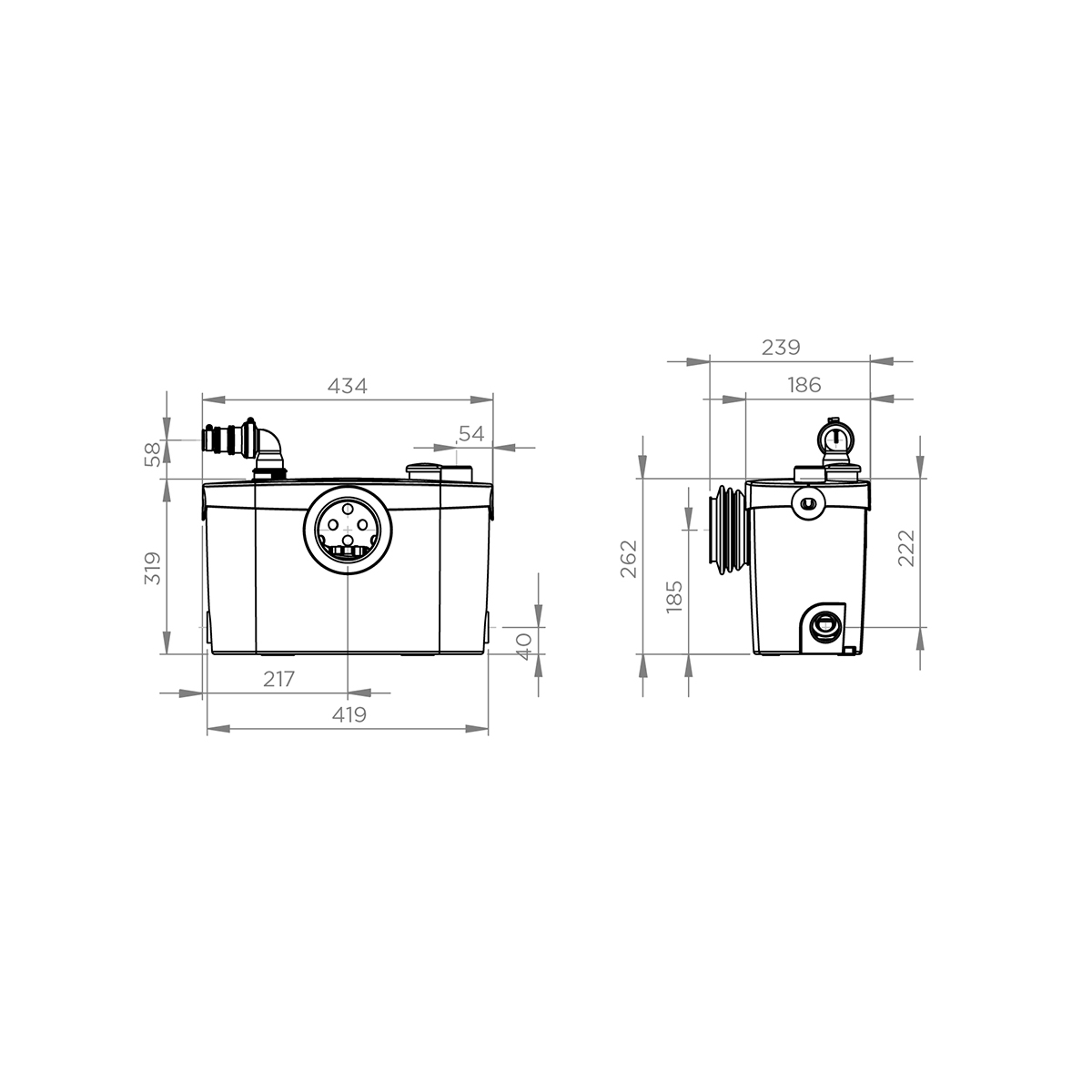

Technical data
| Sanipro XR UP | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Motor output (W) | 400 | |||||||||||||
| Electrical class | I | |||||||||||||
| Frequency (Hz) | 50-60 | |||||||||||||
| Degree of protection | IP44 | |||||||||||||
| Noise level | 46 | |||||||||||||
| Voltage (V) | 220-240 | |||||||||||||

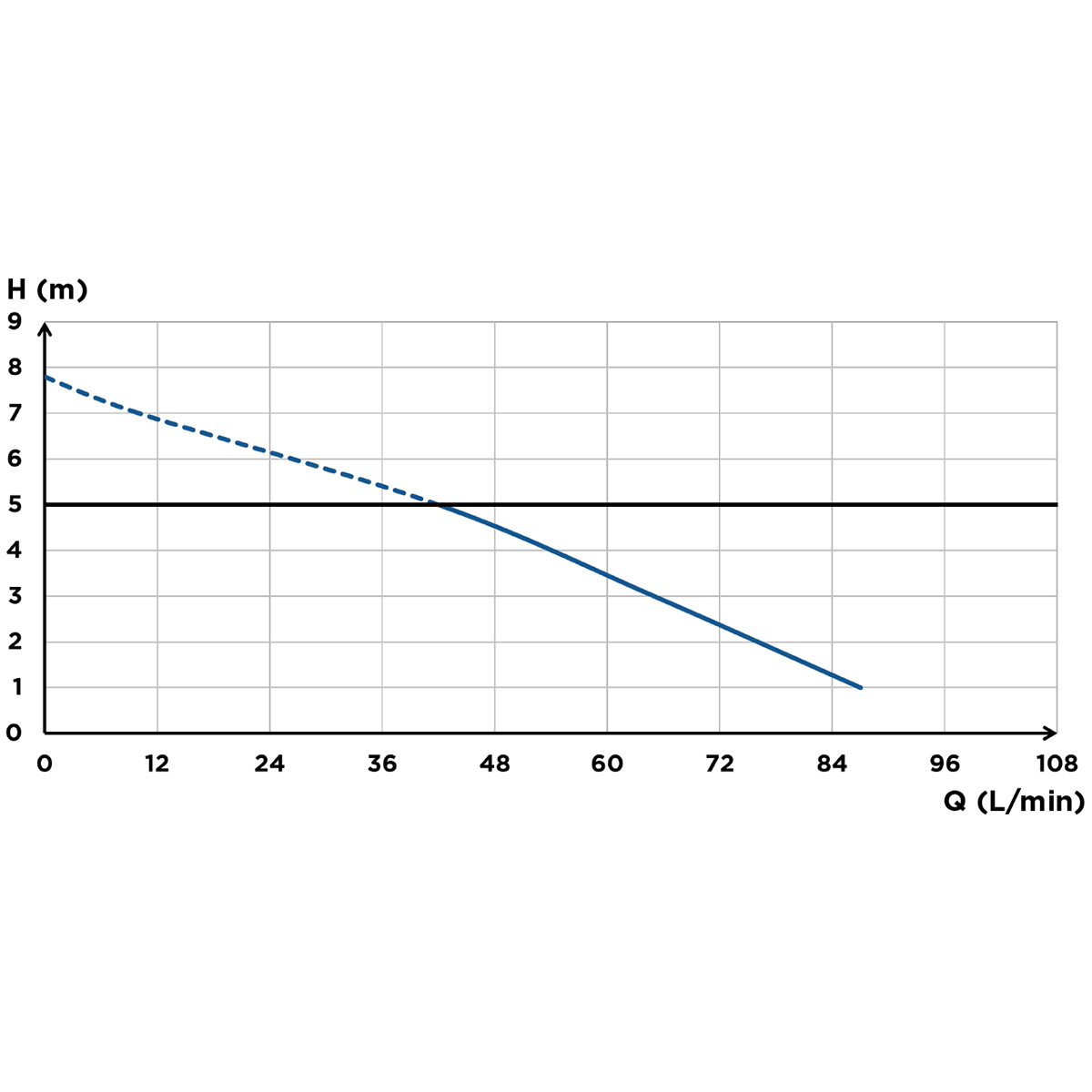

| Max. recommended height (m) | 5 | |||||||||||||
| Conveying distance (m) | 100 | |||||||||||||
| Number of inlets | 4 | |||||||||||||
| Inlet diameter (outer) | 40 100 |
|||||||||||||
| Pressure line diameter (outer) (mm) | 22/28/32 | |||||||||||||
| Max. temperature of incoming water | 35 °C | |||||||||||||
| Min. installation height of shower tray (mm) | 130 | |||||||||||||
| Wheel type | Mono-blade macerator | |||||||||||||
