Exhibits > Macerators > VersaCut
Macerators
VersaCut

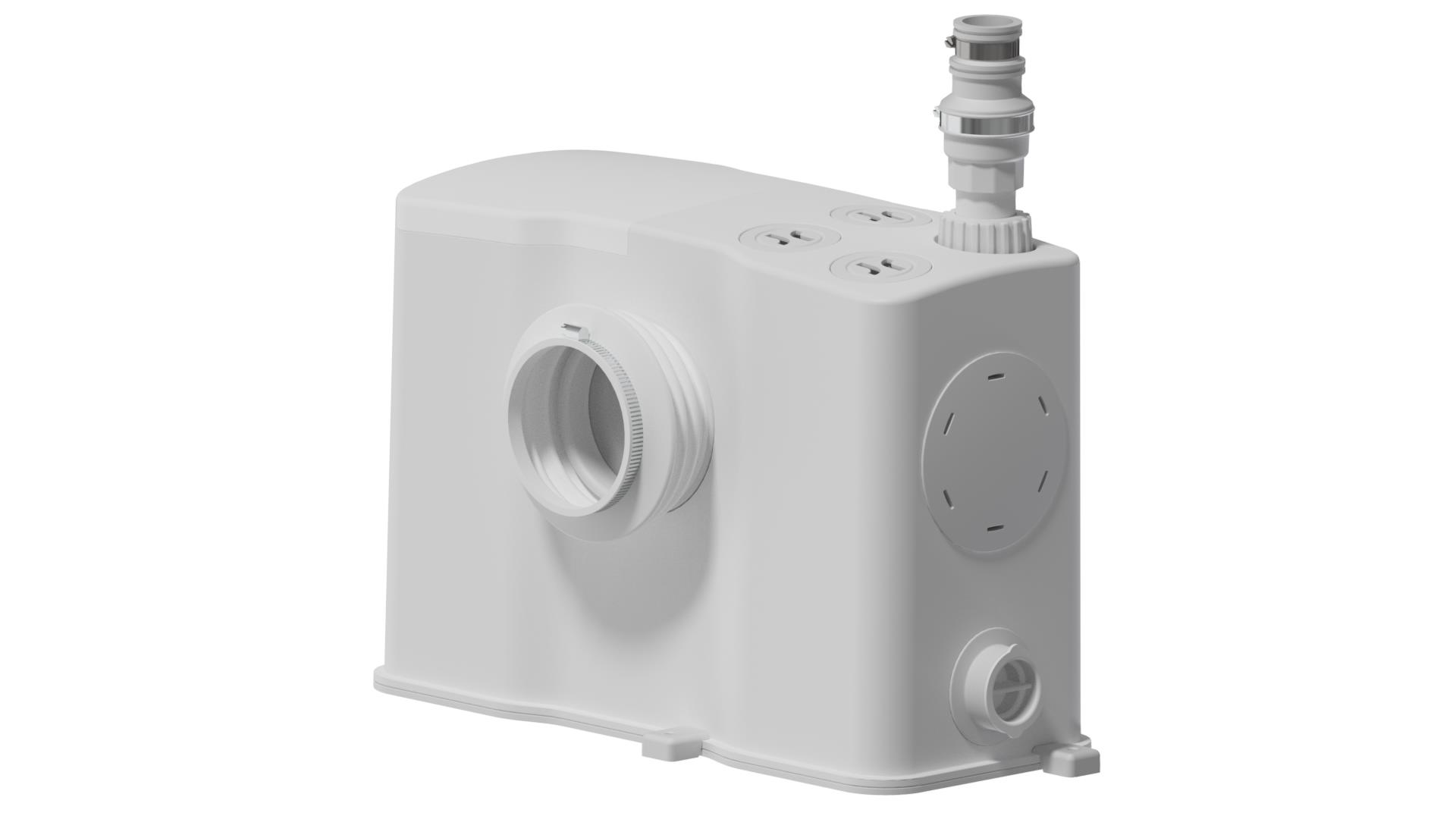

2-in-1 faecal macerator pump with high-performance macerator

The VersaCut is a compact, single-toilet lifting system, ideal for use in the domestic sector and compliant with EN 12050-3. It’s particularly suitable for installations below the backflow level, such as in basement areas or when renovating old buildings. The system efficiently drains water from toilets, showers, washbasins and bidets and can either be connected directly or installed behind a partition wall. Both floor-standing and wall-hung toilets are easy to incorporate. The VersaCut offers a wide range of connection options: two side inlets with backflow valves and three additional selectable connections on the top of the tank (two inlets and one vent). The optimised high-performance macerator made of corrosion-resistant special steel ensures maximum cutting performance, hardness and wear resistance. The collection tank made of robust ABS enables direct connection to a EURO toilet with a minimal inlet height. The system has an activated carbon filter and the option of installing a DN 40 riser so it’s reliably ventilated. The robust, wet-installed pump along with the integrated alarm in the event of faults ensures safe operation. The pressure outlet with a 1¼' internal thread is equipped with an integrated non-return valve and can be aligned horizontally or vertically as required. The VersaCut combines compact design with powerful technology, making it the ideal solution for demanding renovation and basement projects.

Macerators
VersaCut
2-in-1 faecal macerator pump with high-performance macerator

The VersaCut is a compact, single-toilet lifting system, ideal for use in the domestic sector and compliant with EN 12050-3. It’s particularly suitable for installations below the backflow level, such as in basement areas or when renovating old buildings. The system efficiently drains water from toilets, showers, washbasins and bidets and can either be connected directly or installed behind a partition wall. Both floor-standing and wall-hung toilets are easy to incorporate. The VersaCut offers a wide range of connection options: two side inlets with backflow valves and three additional selectable connections on the top of the tank (two inlets and one vent). The optimised high-performance macerator made of corrosion-resistant special steel ensures maximum cutting performance, hardness and wear resistance. The collection tank made of robust ABS enables direct connection to a EURO toilet with a minimal inlet height. The system has an activated carbon filter and the option of installing a DN 40 riser so it’s reliably ventilated. The robust, wet-installed pump along with the integrated alarm in the event of faults ensures safe operation. The pressure outlet with a 1¼' internal thread is equipped with an integrated non-return valve and can be aligned horizontally or vertically as required. The VersaCut combines compact design with powerful technology, making it the ideal solution for demanding renovation and basement projects.

Special features
  • 2-in-1 macerator: Connection of standing or wall-mounted toilet possible
  • High-performance macerator (cuts through wet wipes and sanitary products)
  • 2 side inlets with backflow valve
  • 2 additional inlets on the tank lid (optionally selectable at 3 points)
  • Free choice of position for the tank vent on the lid
  • Very low inlet height (50 mm, side), e.g. for connecting a shower
  • IP 68 – fully submersible
  • Potential-free contact (separate cable), no need to connect to the control system
Application
  • bidet_webanwendung
  • pikto_anwendung_bidet
  • webanwendung_duschkabinen
  • pikto_anwendung_dusche
  • pikto_anwendung_waschtisch
  • wc_webanwendung
  • suspendierte_toiletten_webanwendung
  • handwasch_webanwendung
  • pikto_anwendung_wandhaengendes_wc
  • pikto_anwendung_wc
Technical data
VersaCut
Discharge head max. (m) 7
Flow rate max. (m³/h) 7
Motor seal material Carbon/ceramic/NBR
Motor housing Stainless steel 1.4404
Pump housing PPH GF30
Pump wheel PPH GF30
Frequency (Hz) 50
Degree of protection IP68
Number of pumps 1
Power input P1 (W) 500
Power output P2 (W) 370
Speed (1/min) 2950
Power input P1 max. (kW) 0.5
Power output P2 max. (kW) 0.37
Voltage (V) 230
Nominal current consumption (A) 2.6
Connection cable length (m) 1.5
Mains cable H05
Switch-on level (mm) 100
Switch-off level (mm) 50
Wheel type Macerator
