High-performance lifting stations
Sanicom 1
High-performance non-faecal grey water pump, mainly used in busy private household areas

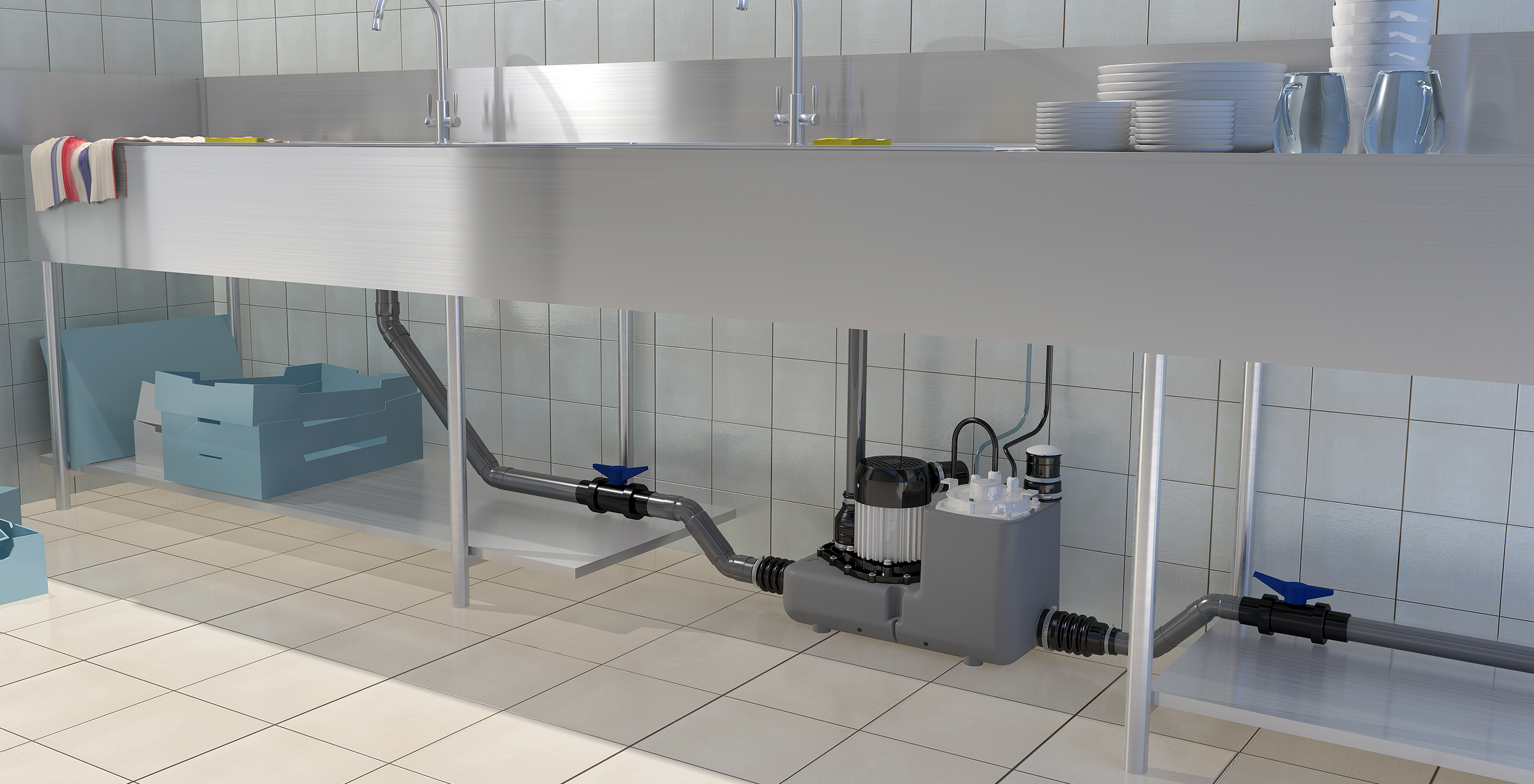

Sanicom 1 is ideal for draining grey water from single-family homes, apartments and smaller community facilities such as doctors’ surgeries, showers in sports halls or laundries. The unit has an integrated level alarm. An optional wired alarm module with audible and visual warning function is available.
High-performance lifting stations
Sanicom 1
High-performance non-faecal grey water pump, mainly used in busy private household areas
Sanicom 1 is ideal for draining grey water from single-family homes, apartments and smaller community facilities such as doctors’ surgeries, showers in sports halls or laundries. The unit has an integrated level alarm. An optional wired alarm module with audible and visual warning function is available.
Special features
- Wide and flexible range of applications thanks to two low-lying inlets
- Ready for installation – simple, floor-standing installation without major preparatory work
- Easy to access for maintenance thanks to externally mounted components
- Designed for media temperatures of up to 90 °C in short-term operation (max. 5 min.) – can also be used in laundries, utility rooms, etc.
Technical data
| Sanicom 1 | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Discharge head max. (m) | 11 | |||||||||||||
| Flow rate max. (m³/h) | 12 | |||||||||||||
| Waste water type | Corrosive and/or saline water Grey water |
|||||||||||||
| Drive shaft | Stainless steel | |||||||||||||
| Motor housing | Aluminium | |||||||||||||
| Pump housing | PA 12 GF | |||||||||||||
| Tank | PE | |||||||||||||
| Seal | NBR | |||||||||||||
| Pump wheel | PA 6 GF | |||||||||||||
| Motor insulation class | F | |||||||||||||
| Electrical class | I | |||||||||||||
| Frequency (Hz) | 50-60 | |||||||||||||
| Degree of protection | IPX4 | |||||||||||||
| Number of pumps | 1 | |||||||||||||
| Power input P1 (W) | 750 | |||||||||||||
| Power output P2 (W) | 525 | |||||||||||||
| Speed (1/min) | 2800 | |||||||||||||
| Alarm type | Wired externally | |||||||||||||
| Control type | Integrated | |||||||||||||
| Current type | Single-phase | |||||||||||||
| Voltage (V) | 220-240 | |||||||||||||
| Connection cable length (m) | 1.5 | |||||||||||||
| Mains cable | H05 RN-F 3G | |||||||||||||
| Number of inlets | 2 | |||||||||||||
| Inlet diameter (outer) | 40 50 |
|||||||||||||
| Pressure line diameter (outer) (mm) | 32 | |||||||||||||
| Discharge diameter (inner) (mm) | 32 | |||||||||||||
| Outer ventilation diameter (mm) | 50 | |||||||||||||
| Max. temperature of incoming water | 90 °C | |||||||||||||
| Min. installation height of shower tray (mm) | 150 | |||||||||||||
| Free passage (mm) | 8 | |||||||||||||
| Max. temperature (°C) | 35 | |||||||||||||
| Fill level alarm (mm) | 205 | |||||||||||||
| Switch-on level (mm) | 135 | |||||||||||||
| Switch-off level (mm) | 50 | |||||||||||||
| Max. temperature of pumped liquid (short-term, max. 5 min.) | 90 °C | |||||||||||||
| Circuit type | Pneumatic | |||||||||||||
| Wheel type | Multi-channel wheel | |||||||||||||
| Total volume (l) | 14 | |||||||||||||
| Effective volume (l) | 5.7 | |||||||||||||
