High-performance lifting stations
Sanicubic 1 NM
Single-motor high-performance lifting station for the disposal of grey water and blackwater

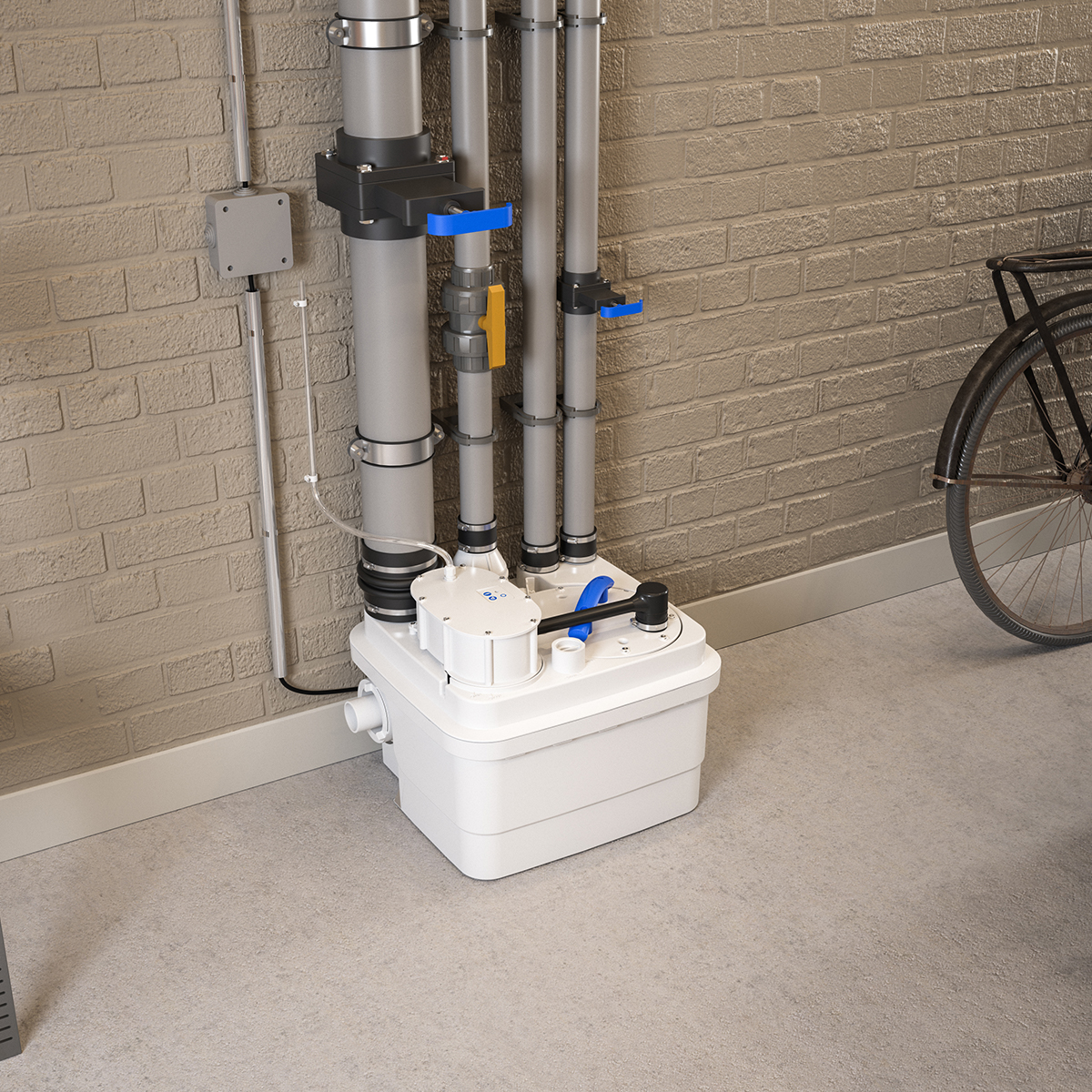

The single-motor Sanicubic 1 NM lifting station is equipped with a high-performance macerator for effective maceration of solids (faeces, toilet paper). This model has been specially designed for domestic use (single-family homes, small business premises) and lifts all waste water from toilets, bathrooms, kitchens or utility rooms. The alarm system connected by cable with audible and visual alarm is included as standard.
High-performance lifting stations
Sanicubic 1 NM
Single-motor high-performance lifting station for the disposal of grey water and blackwater
The single-motor Sanicubic 1 NM lifting station is equipped with a high-performance macerator for effective maceration of solids (faeces, toilet paper). This model has been specially designed for domestic use (single-family homes, small business premises) and lifts all waste water from toilets, bathrooms, kitchens or utility rooms. The alarm system connected by cable with audible and visual alarm is included as standard.
Special features
- Powerful and wear-resistant Pro X K2 cutting wheel for reliable operation
- Wide and flexible range of applications thanks to four inlets, two of which are on the side, with external diameters of 40 to 110 mm
- Easy to maintain thanks to easy access to the motor and level sensors
- Designed for media temperatures of up to 70 °C in short-term operation
- Cable alarm module provides reliable information in the event of faults
- Easy, floor-standing installation with no major preparatory work
Technical data
| Sanicubic 1 NM | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Discharge head max. (m) | 13 | |||||||||||||
| Flow rate max. (m³/h) | 15 | |||||||||||||
| Waste water type | Grey water Blackwater |
|||||||||||||
| Drive shaft | Stainless steel | |||||||||||||
| Motor housing | PA 12 GF | |||||||||||||
| Pump housing | PA 12 GF | |||||||||||||
| Tank | PP | |||||||||||||
| Seal | NBR | |||||||||||||
| Pump wheel | PP GF | |||||||||||||
| Motor insulation class | F | |||||||||||||
| Electrical class | I | |||||||||||||
| Frequency (Hz) | 50-60 | |||||||||||||
| Degree of protection | IP67 | |||||||||||||
| Control cable length (m) | 4 | |||||||||||||
| Operating mode | S3 30% | |||||||||||||
| Number of pumps | 1 | |||||||||||||
| Power input P1 (W) | 1500 | |||||||||||||
| Power output P2 (W) | 1050 | |||||||||||||
| Speed (1/min) | 2800 | |||||||||||||
| Current type | Single-phase | |||||||||||||
| Power input P1 max. (kW) | 1.94 | |||||||||||||
| Power output P2 max. (kW) | 1.36 | |||||||||||||
| Voltage (V) | 220-240 | |||||||||||||
| Connection cable length (m) | 2.5 | |||||||||||||
| Mains cable | H07 RN-F 3G | |||||||||||||
| Number of inlets | 4 | |||||||||||||
| Inlet diameter (outer) | 40 50 100 110 |
|||||||||||||
| Pressure line diameter (outer) (mm) | 50 | |||||||||||||
| Outer ventilation diameter (mm) | 50 | |||||||||||||
| Max. temperature (°C) | 35 | |||||||||||||
| Fill level alarm (mm) | 210 | |||||||||||||
| Max. temperature of pumped liquid (short-term, max. 5 min.) | 70 °C | |||||||||||||
| Circuit type | Pneumatic | |||||||||||||
| Wheel type | Pro X K2 macerator | |||||||||||||
| Total volume (l) | 32 | |||||||||||||
| Effective volume (l) | 10 | |||||||||||||
