Grey water pumps

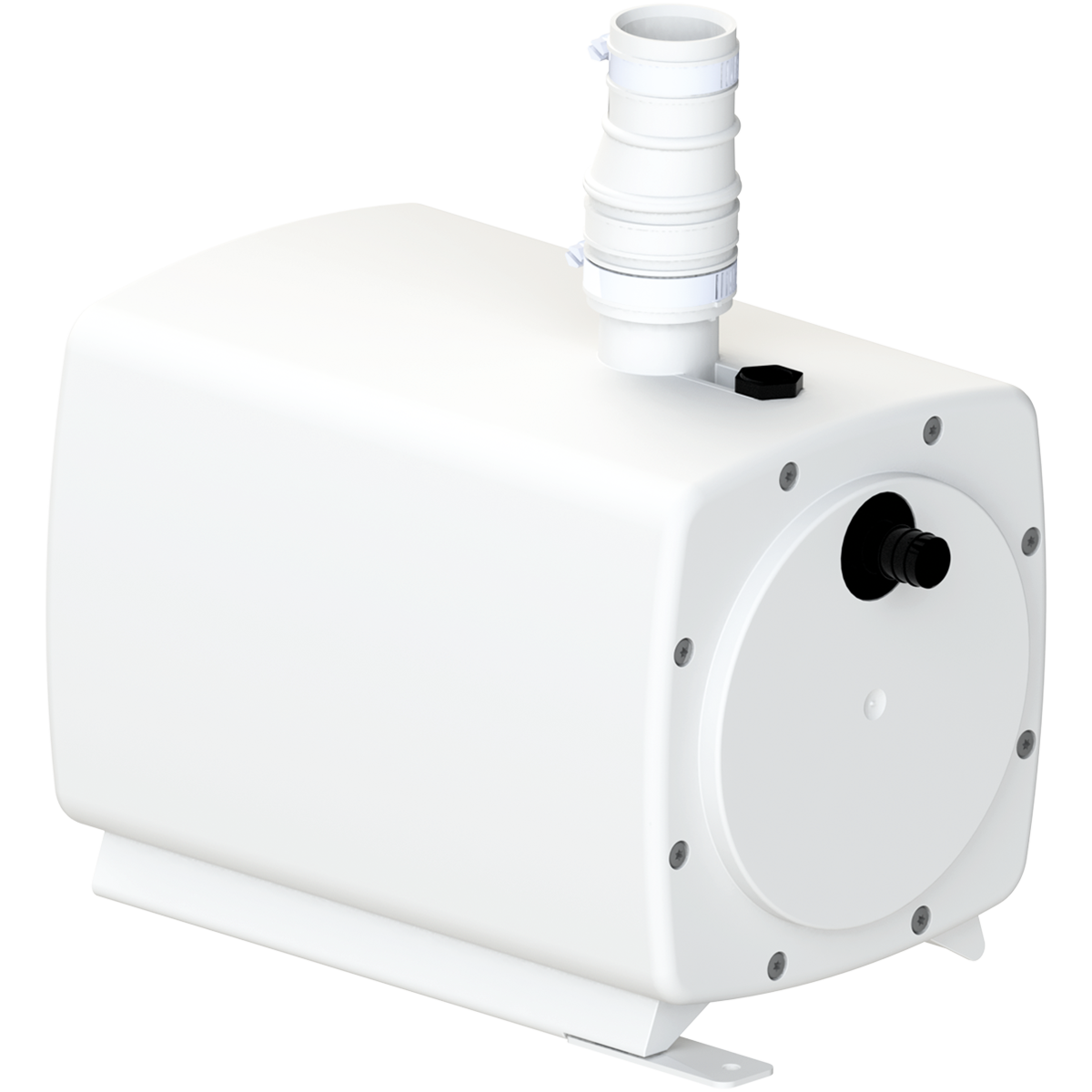

Sanifloor+ 3
Suction pump and drain: the ideal connection for installing a walk-in shower in a second bathroom
The compact and powerful Sanifloor+ 3 suction pump enables the installation of modern, walk-in showers in many households. Depending on the installation situation, Sanifloor+ 3 is supplied with the appropriate drain for extra-thin shower trays. Thanks to the high flow rate, you can even install a rain shower head, for added comfort in the shower area:

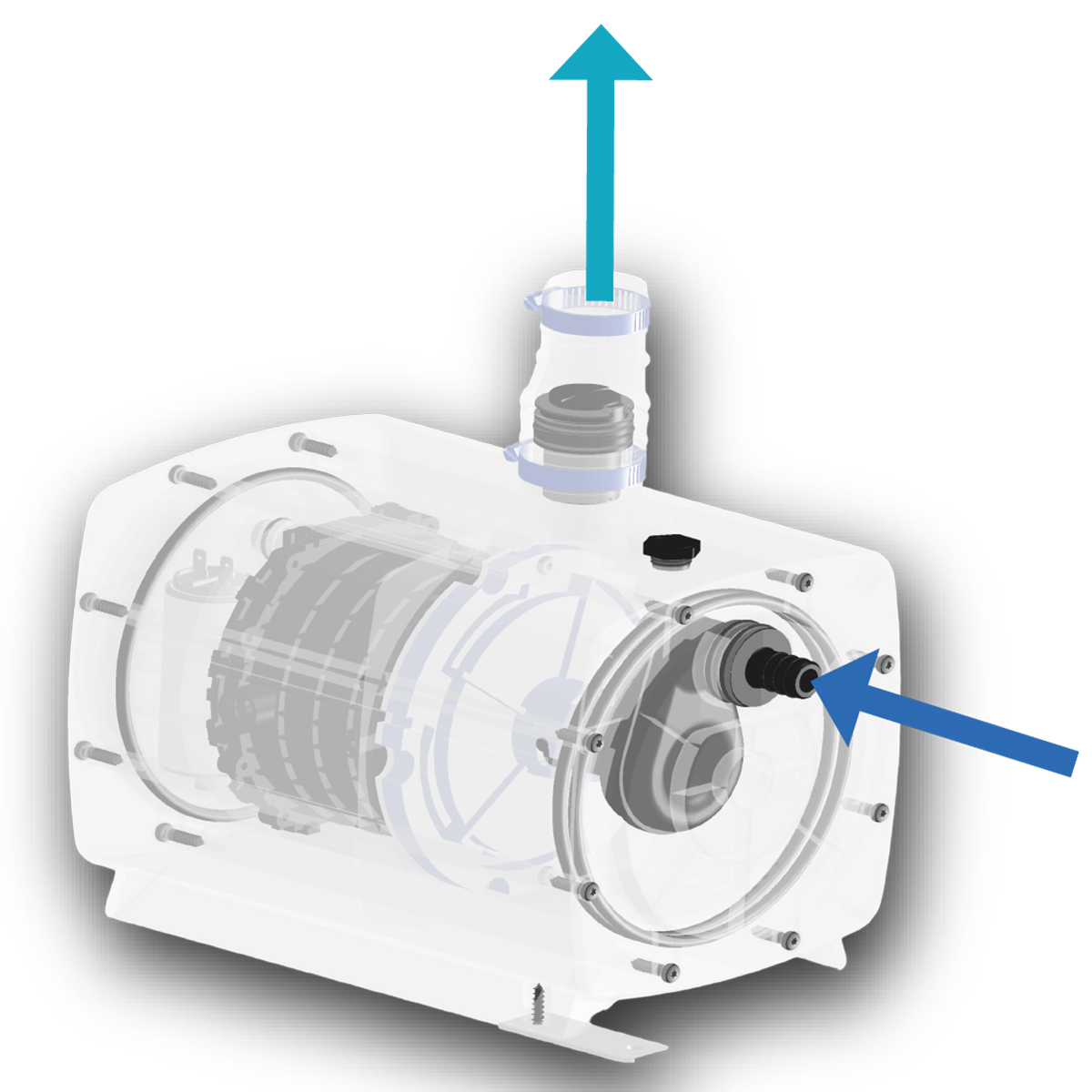

The wireless communication system between the drain and the pump enables faster and easier installation. As soon as the water reaches the outlet, the pump is activated automatically.The clever dual function allows the water to be drawn out of the drain and pumped out.
Sanifloor+ 3 enables the installation of walk-in showers without direct access to the waste water pipe, as well as offering a solution for subsequent installation of an accessible shower almost anywhere in the house.
Grey water pumps
Sanifloor+ 3
Suction pump and drain: the ideal connection for installing a walk-in shower in a second bathroom
The compact and powerful Sanifloor+ 3 suction pump enables the installation of modern, walk-in showers in many households. Depending on the installation situation, Sanifloor+ 3 is supplied with the appropriate drain for extra-thin shower trays. Thanks to the high flow rate, you can even install a rain shower head, for added comfort in the shower area:
The wireless communication system between the drain and the pump enables faster and easier installation. As soon as the water reaches the outlet, the pump is activated automatically.The clever dual function allows the water to be drawn out of the drain and pumped out.
Sanifloor+ 3 enables the installation of walk-in showers without direct access to the waste water pipe, as well as offering a solution for subsequent installation of an accessible shower almost anywhere in the house.
Special features
- Walk-in, accessible shower solution for almost anywhere in a building
- Compatible with rain showers thanks to high flow rate
- High level of safety due to the external location of the electrical components
- Easy to maintain thanks to the removable and easy-to-clean hair sieve
- Comprehensive solution: suction pump, radio receiver and siphon for various installation situations
Application

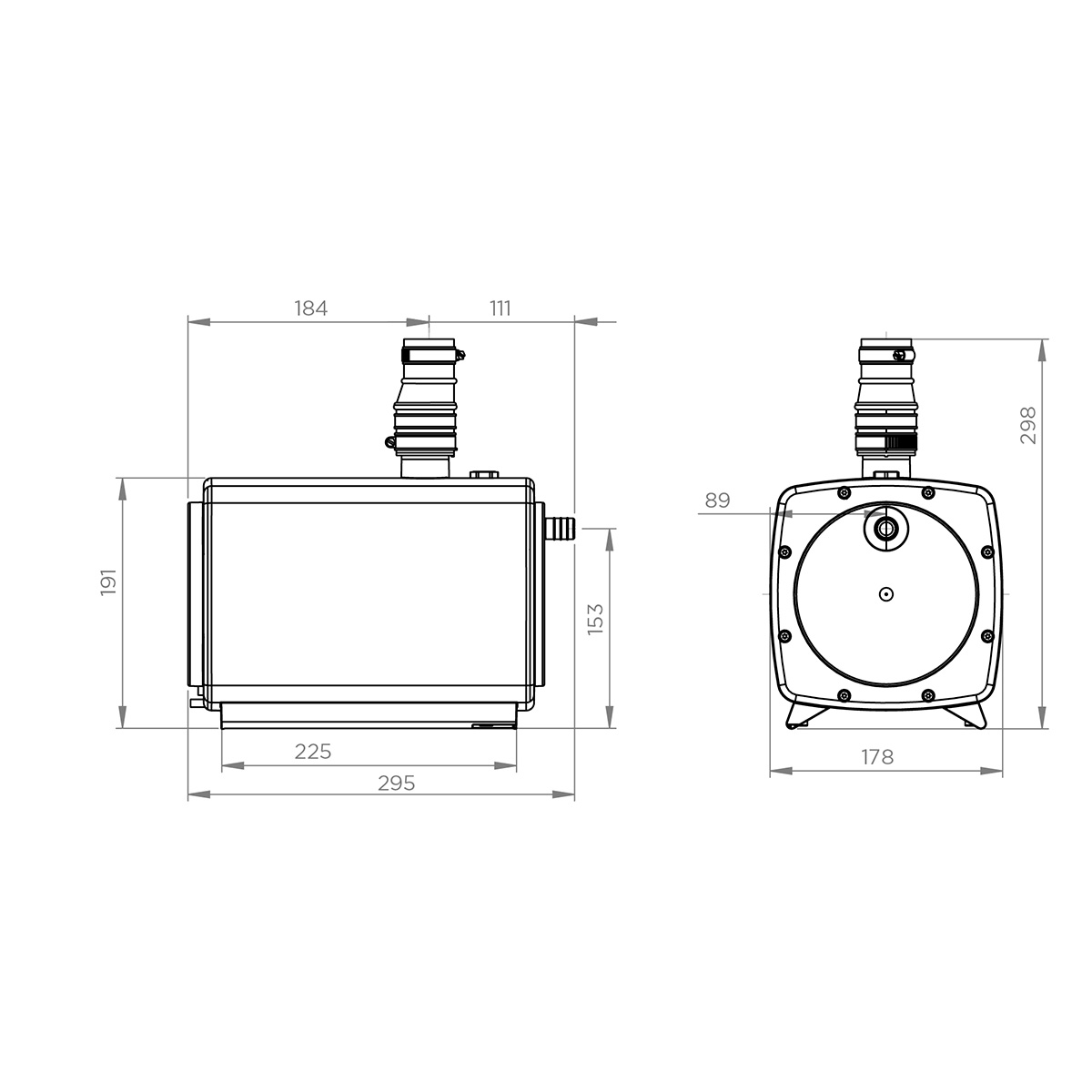

Technical data
| Sanifloor+ 3 | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Motor output (W) | 400 | |||||||||||||
| Electrical class | I | |||||||||||||
| Frequency (Hz) | 50-60 | |||||||||||||
| Degree of protection | IP44 | |||||||||||||
| Voltage (V) | 220-240 | |||||||||||||

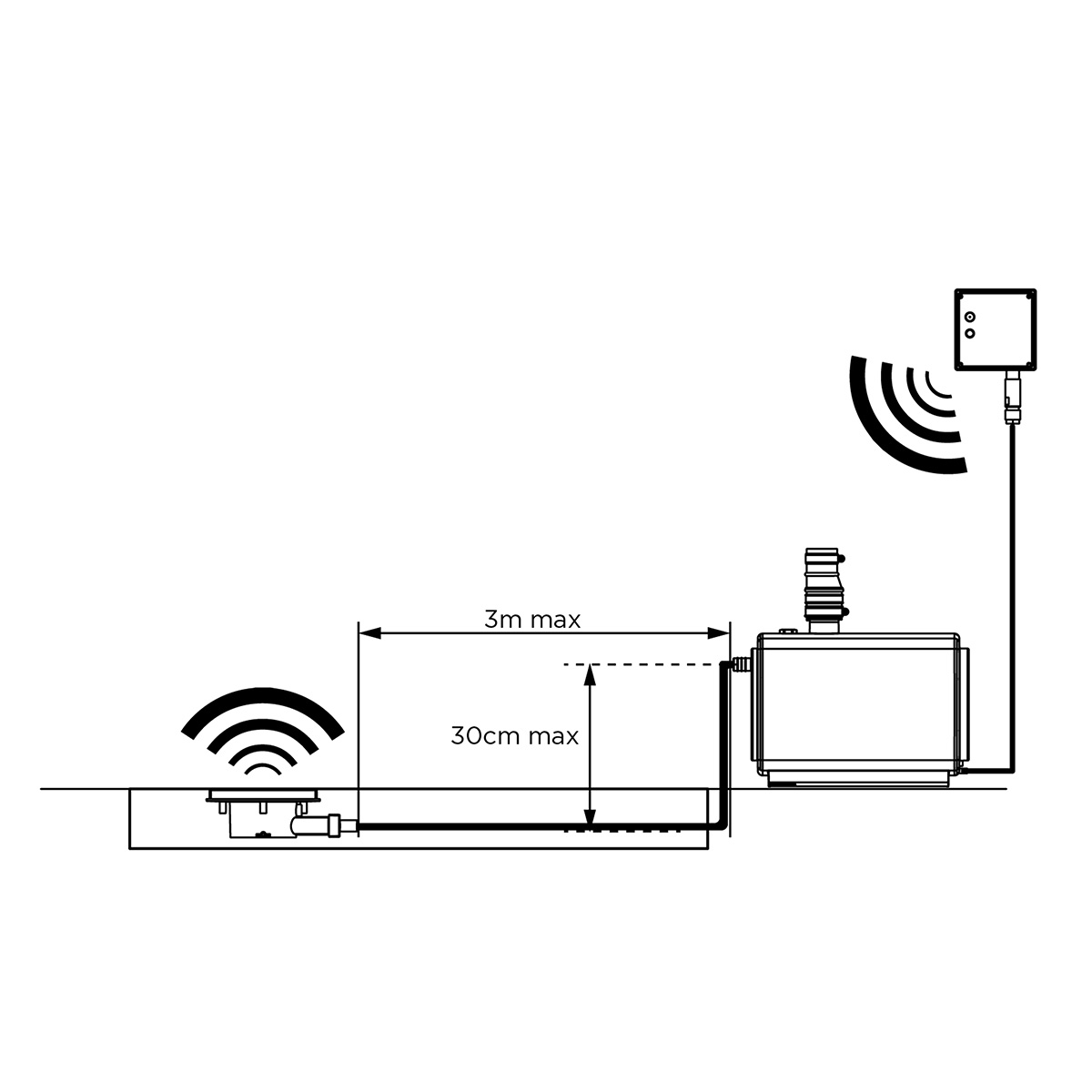

| Max. recommended height (m) | 3 | |||||||||||||
| Conveying distance (m) | 30 | |||||||||||||
| Number of inlets | 1 | |||||||||||||
| Inlet diameter (outer) | 16 | |||||||||||||
| Pressure line diameter (outer) (mm) | 32 | |||||||||||||
| Discharge diameter (inner) (mm) | 32 | |||||||||||||
| Max. temperature of incoming water | 35 °C | |||||||||||||
